Lathe - CNC

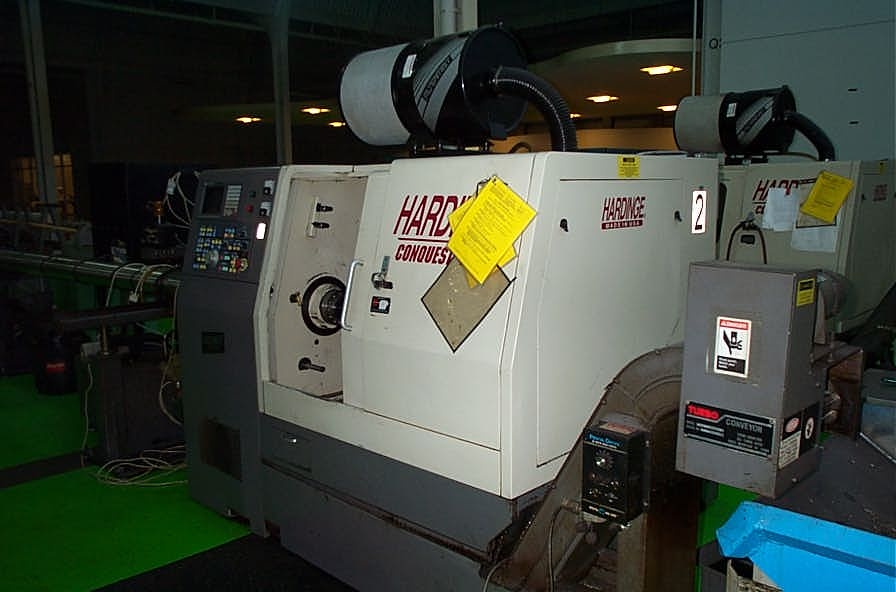

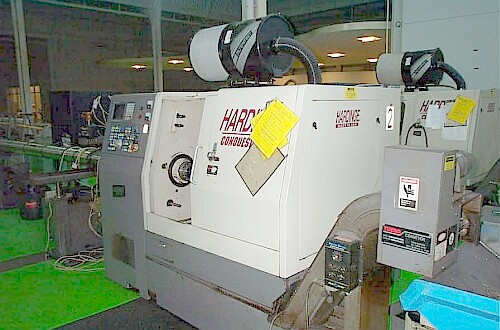

(1) Hardinge Conquest 42 CNC Turning Center Lathe
S/N SG 232
New 1996

Maximum swing over upper way covers 19.5"
Maximum swing over lower way covers 14.5"
Maximum turning diameter 10.8"
Maximum turning length 13.65"
Travels; X - Axis 5.45"
Z - Axis 13,65"
B (Sub Spindle) Axis 11.5"
C - Axis 1 Degree
Rapid Traverse Rate X/Z - 472/630 IPM
Spindle Bore/Bar Cap. - 1.875"/1.625"
Spindle Nose A2-5
Spindle Speeds 50 to 5000 RPM
Spindle Speeds Sub 100 to 3000 RPM
Spindle Motor Main/Sub 10 HP/1.65 HP

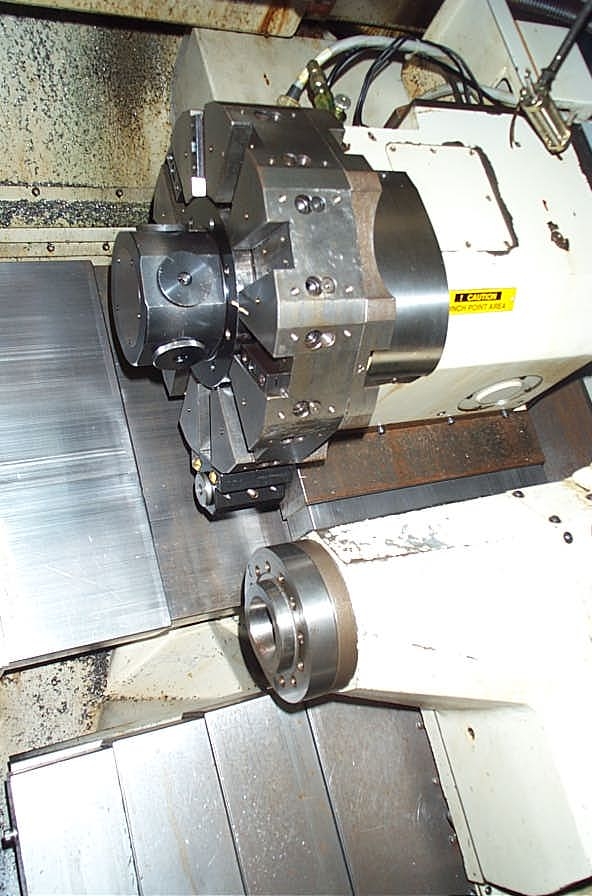

Turret Cap 10 Station/ 5 Live
Live Tooling Speeds 100 to 4000 RPM
Machine Weight 10000 lbs.
G.E. Fanuc CNC Controls Model 18T
RS232 Port

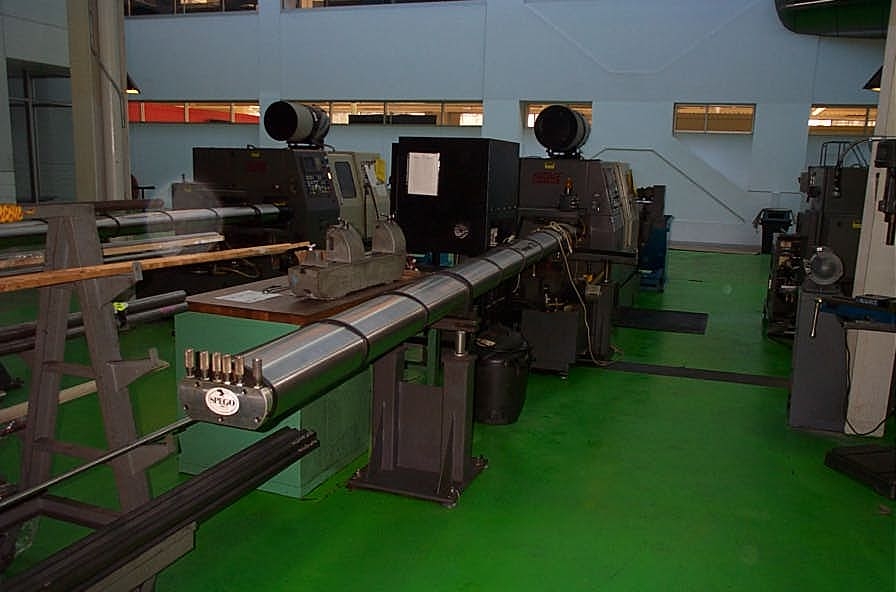

Spego Bar Feed Model 126
Standard Coolant
Fob Our Warehouse
