Lathe - CNC

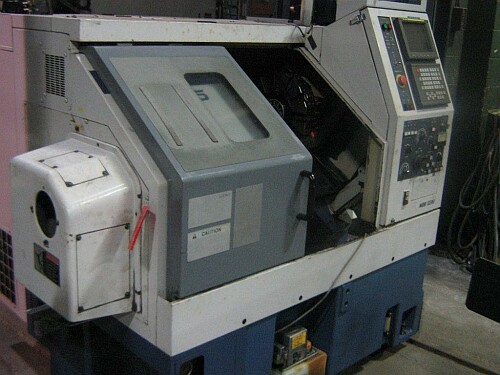

(1) Mori Seiki CL15 CNC Turning Center Lathe
S/N 204
New 1996
Swing over the bed 18.5"
Swing over the cross slide 14.9"
Maximum Machining Diameter 9.8"
Maximum Machining Length 13"
Spindle Bore 1.77"
Maximum Bar Capacity 1.3"
X - Axis Travel 7.5"
Z - Axis Travel 14.6"
Spindle Speeds to 6000 RPM
Spindle Nose A2-5
Main Motor 10 HP
Rapid Traverse Rates 590/787 IPM
Number of Turret Positions 12

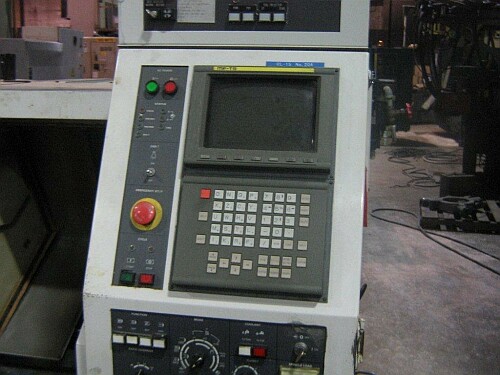

Mori MF-T8 CNC Controls (Fanuc 18T)
Chip Conveyor
Coolant Pump & Tank
FOB Our Warehouse
